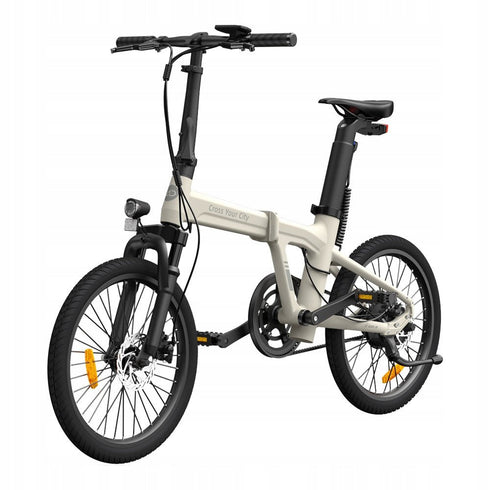

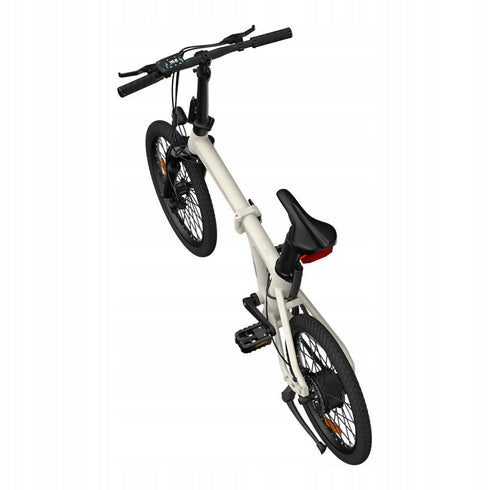

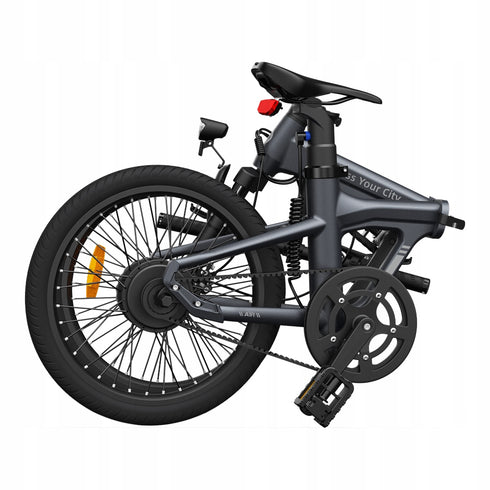

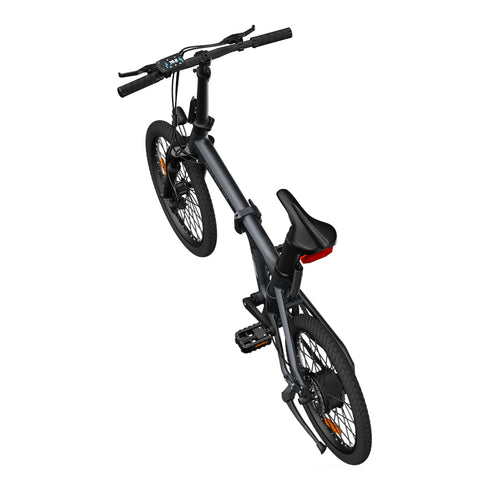

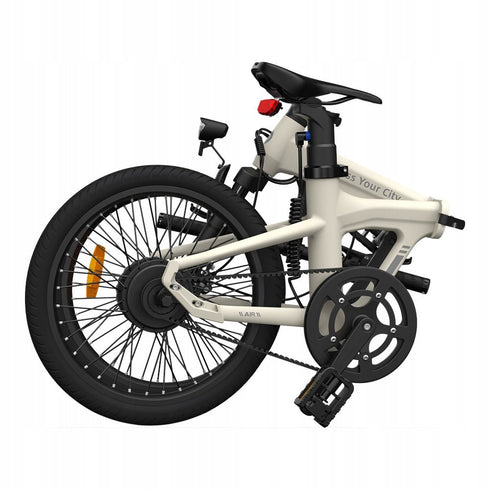

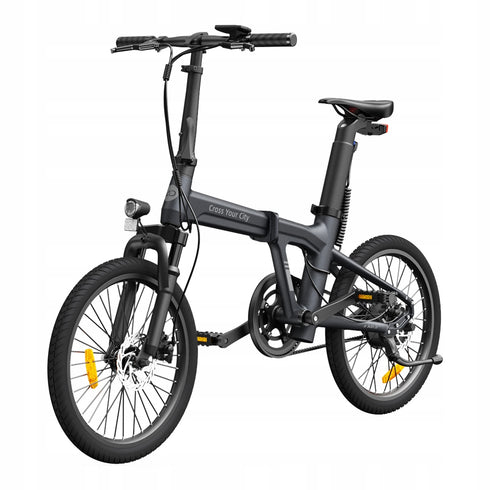

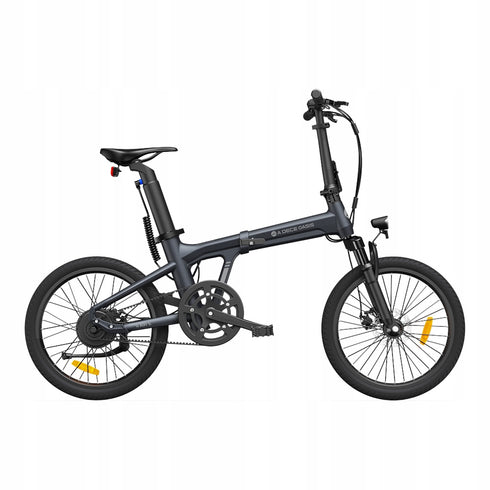

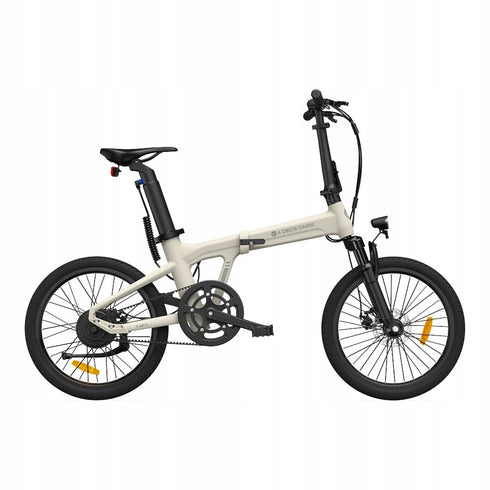

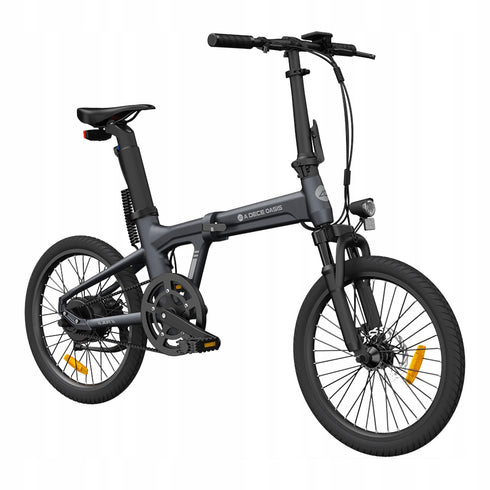

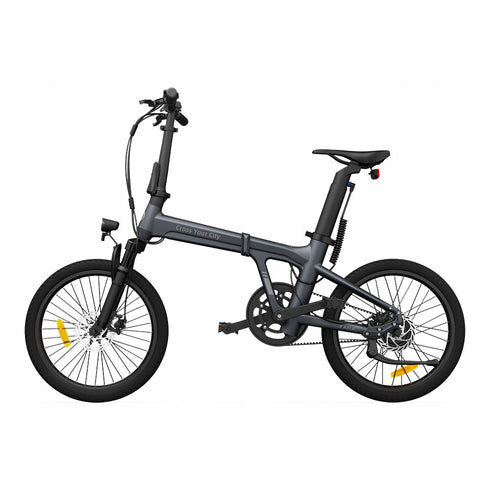

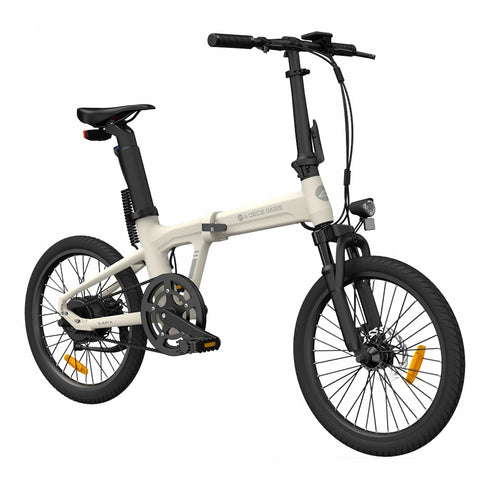

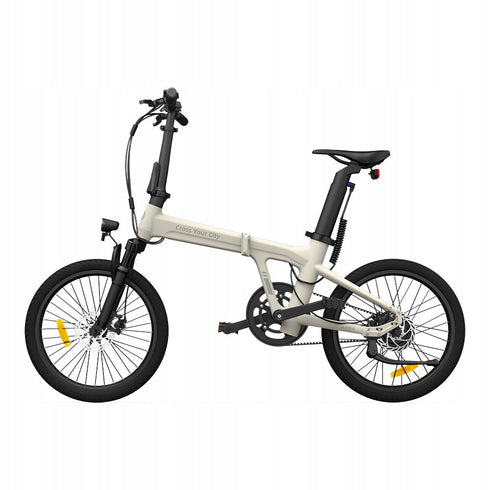

ADO Air 20S Folding E-Bike Revolution 35KMH
SKU: 6974587222596
AVAILABILITY: In stock (14 items)
Free Shipping in UAE For orders above AED 100
7 days easy returns.
Comfortable and smooth
Always Feel in Control
Enjoy superior comfort with the Air 20S's shock absorption system and experience smooth, noiseless braking with hydraulic disc brakes. Take control of your ride and your world with the Air 20S.
General Spec
Range
100 km max range
Speed
25 km/h
Net Weight
18 kg
Certificate
SGS CE
Suspension
Front fork suspension
Transmission
none
Tyre Size
20*1.95 Inch
Pedal Assist
Torque sensor
Assist Intelligent
0-3 level pedal assist
Rider Heights
150cm-200cm
Weight Capacity
120kg
Working Temperature
-10~50°C
Electronic Spec
Motor
CE Verison: 250W Intl. Version: 350W
Battery
Samsung 36V/9.6 Ah
Throttle
CE Version：Without throttle Intl. version：Thumb throttle
Charging Time
4-6 hours

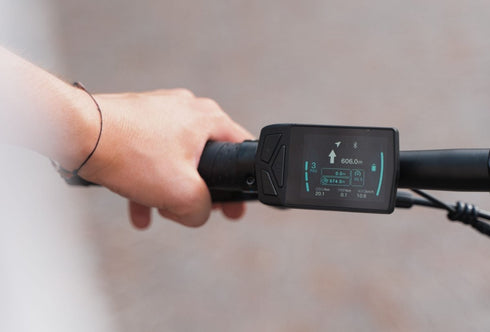

Display
IPS Color Display
Torque
CE Verison: 37N.m Intl. Version: 42N.m
Components Spec

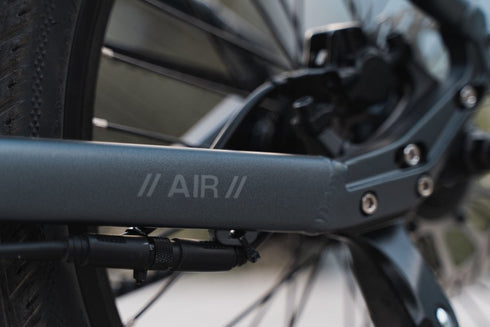

Frame
Lightweight Aluminum Frame
Brakes
Hydraulic disc brakes
Wheels
Double Walled Aluminum
Fork
Standard
Headlight
IPX5 Waterproof 1200lumen
Tail Light
Relector Tail Light
Chain Ring
Carbon Belt
Pedals
Folding Pedals
Seat
Standard
Waterproof
IPX5

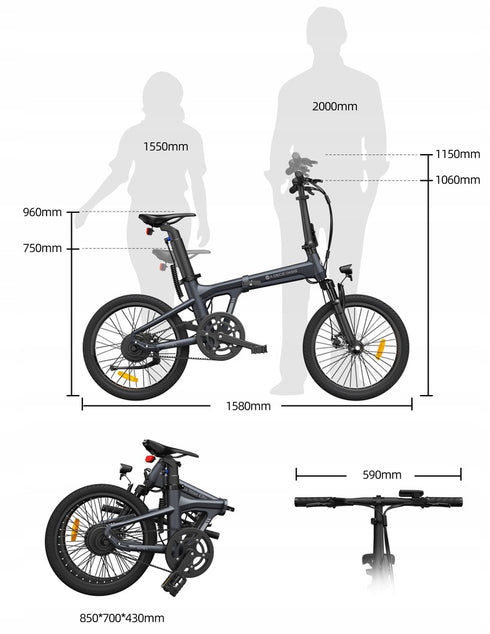

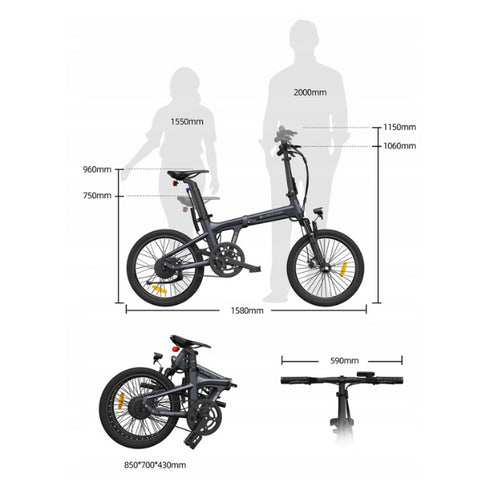

Size
| A: Seat Tube Length | B: Head Tube Length |
|---|---|
| 370mm | 330mm |
| C: Top Tube Length | D: Fork Length |
| 630mm | 310mm |
| E: Reach | F: Maximum Seat Height |
| 420mm | 960mm |
| G: Minimum Seat Height | H: Total Length |
| 740mm | 1560mm |
| I: Maximum Handlebar Height | J: Minimum Handlebar Height |
| 1150mm | 1020mm |
| K: Standover Height | L: Wheel Diameter |
| 600mm | 510mm |
| M: Wheelbase | N: Chainstay Length |
| 1060mm | 410mm |
| Package Size | |
| 880*360*610mm |
