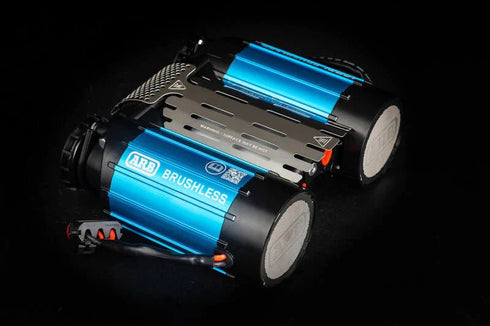

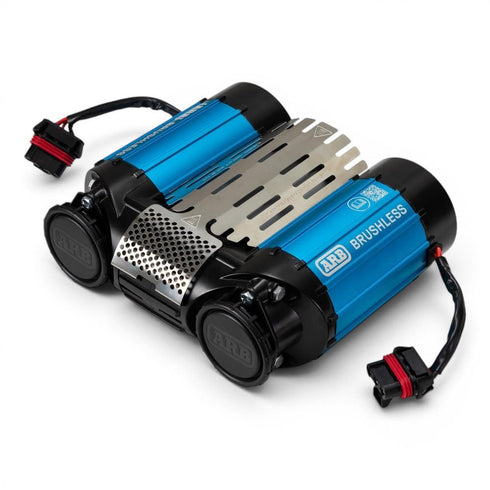

ARB Brushless Twin Motor Onboard 12V Air Compressor
3 Year Warranty
SKU: CKBLTA12
AVAILABILITY: In stock (2 items)
The ARB Brushless Twin is a 12V onboard twin-motor air compressor that delivers 9.18 CFM at 0 psi with a 100% duty cycle and IP67 protection, about 50% more output than ARB's brushed compressors.
It is built for 4x4 owners who air down for the sand at Al Qudra, Liwa or Fossil Rock and need to reinflate fast before hitting the tarmac, and for running ARB Air Lockers. A fan in each motor actively cools it, electronic speed control keeps performance steady in UAE summer heat, and live status reporting, voltage and overload protection guard the compressor and your vehicle's electrics. Smart Start staggers the two motors to reduce the start-up power spike, no relays are needed, and cam-lock quick-release mounts make installation simple. It works with ARB's existing air accessories and hose kits.
Specifications
- Voltage: 12V
- Motors: twin brushless, active fan cooling
- Air flow: 9.18 CFM at 0 psi, 6.20 CFM at 29 psi
- Duty cycle: 100%
- Max current: 90 A
- Water resistance: IP67
- Protection: electronic speed control, voltage and overload protection, status reporting
- Mounting: onboard, cam-lock quick-release mounts, no relays needed
- Size: 14.49 x 13.31 x 6.69 in (L x W x H)
- Weight: 15.8 lb
- Compatibility: ARB Air Lockers, ARB air accessories and hose kits
- 50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring

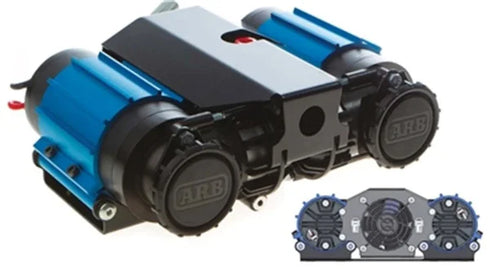

- Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity
- Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
- Status Reporting – Live diagnostics via audio and visual alerts
- Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
- Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems
- Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process
- Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time
- Smart Start - Staggered “Power-On” for twin variants to reduce the power spike at start up allowing brushless twins to start up on vehicles with smaller charging systems
| General | |
|---|---|
| Prop 65 | No |
| IP Rating | IP :67 Water Resistant |
| Duty Cycle | 100% |
| Air Flow 0PSI | 9.18 CFM |
| Air Flow 29PSI | 6.20 CFM |
| Design | Brushless |
| Design | Onboard |
| Dimensions and weight | |
| Width | 13.31 inch |
| Height | 6.69 inch |
| Length | 14.49 inch |
| Weight | 15.8 lb |
| Power and battery | |
| Volts | 12V |
| Max Amps | 90 |
| Shipping and package | |
|---|---|
| Package size (L x W x H) | 45 x 30 x 25 cm |
| Shipping weight | 7 kg |

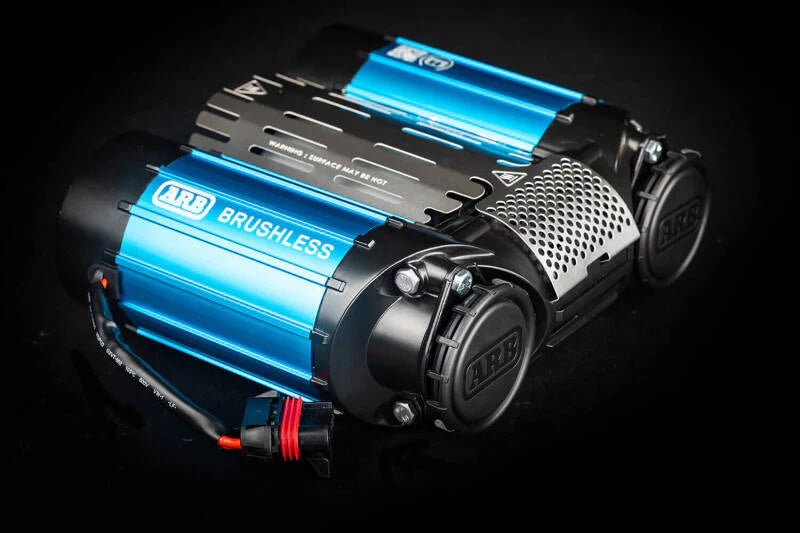

50% more output than ARB brushed models
Twin brushless motors deliver about 50% more air than ARB's brushed compressor, with a fan in each assembly for higher performance.

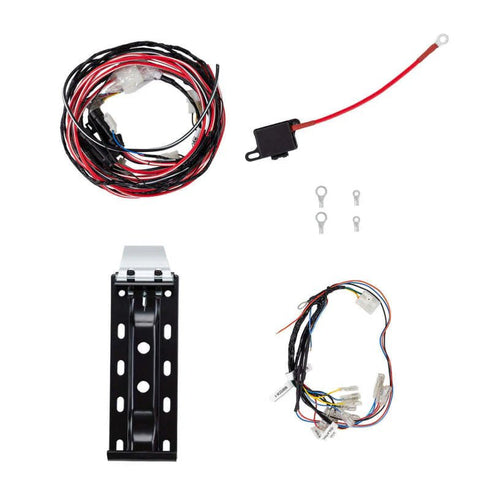

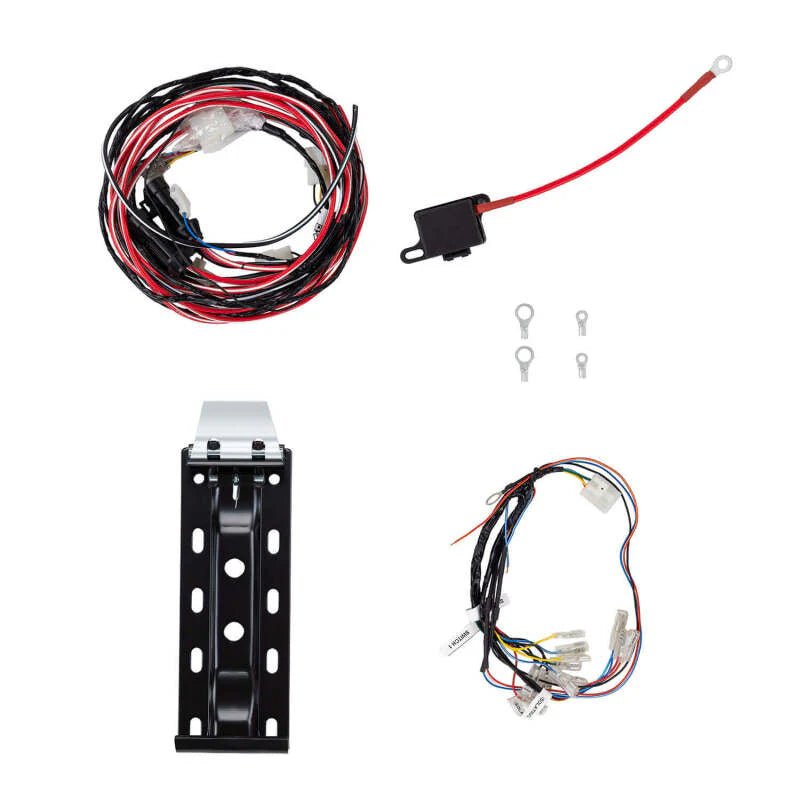

Quick-release mounts, no relays needed
Cam-lock quick-release mounts make fitting and removal simple, and the brushless design does away with separate relays.

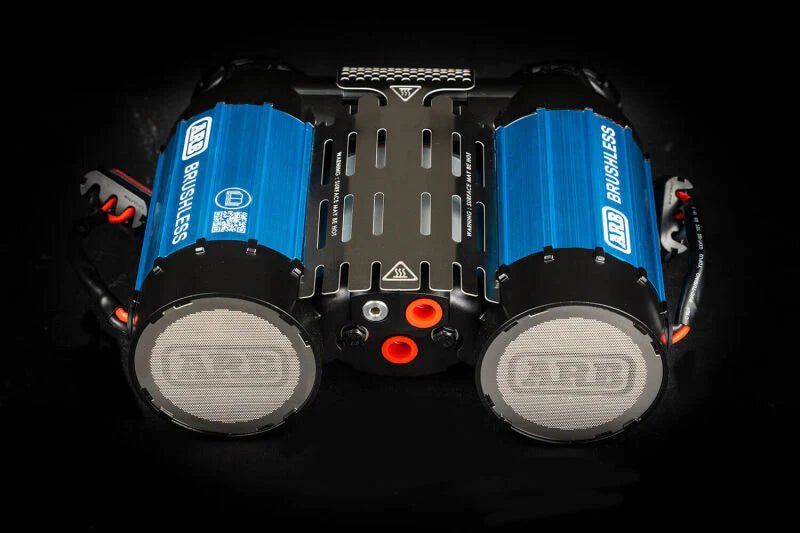

Smart Start for smaller charging systems
Staggered power-on cuts the start-up spike so the twin can run on vehicles with smaller charging systems, with live audio and visual status alerts.
