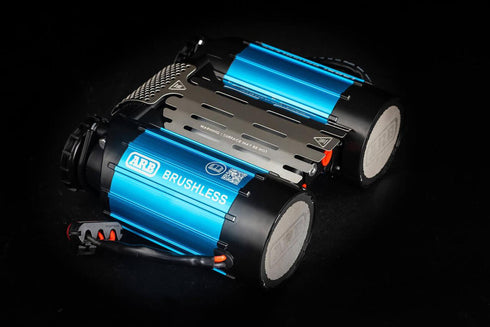

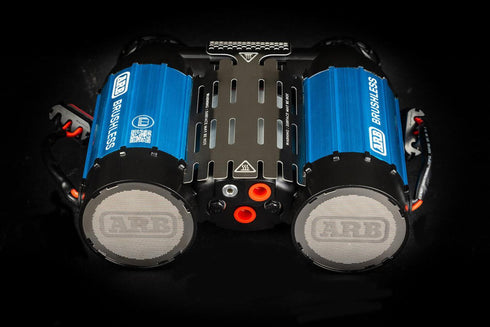

The ARB Brushless Twin Portable is a 12 V twin-motor air compressor that flows 9.18 CFM, reaches 150 psi and is sealed to IP67, built to re-inflate large 4x4 tyres fast after airing down.
It is made for UAE off-roaders who drop tyre pressure for the dunes of Liwa, Al Faya or Fossil Rock and need to air back up quickly before the drive home, and for overlanders running ARB Air Lockers or air tools. ARB rates it at 50% more output than its brushed compressors, with fan cooling in each motor, electronic speed control that adapts to heat and voltage, and protection against overload, spikes and stalls. Smart Start staggers the two motors so it can start on vehicles with smaller charging systems.
Specifications
Voltage: 12 V
Air flow: 9.18 CFM at 0 psi, 6.20 CFM at 29 psi
Max pressure: 150 psi
Max current: 90 A
Duty cycle: 90%
Water and dust rating: IP67
Motors: twin brushless, active fan cooling
Dimensions: 18.8 x 14 x 7.3 in (48 x 36 x 19 cm)
Weight: 29.3 lb (13.3 kg)
Included: 20 ft (6 m) air hose, tyre inflation chuck, blow gun, polarity correction harness
Compatibility: ARB air accessories, hose kits and ARB Air Lockers
Model: ARB CKBLTP12
Features
Feature
What it does for you
50% Increase in output
ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring.
Active cooling
An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity.
Electronic speed control
Maintains optimum performance and operations across all pressure and ambient temperature conditions.
Status reporting
Live diagnostics via audio and visual alerts.
Voltage and overload protection
Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls.
Continuity in function
The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems.
Polarity correction harness
The Brushless portable includes a polarity correction harness, allowing you to connect either of the two blue alligator clamps to either terminal on your battery.

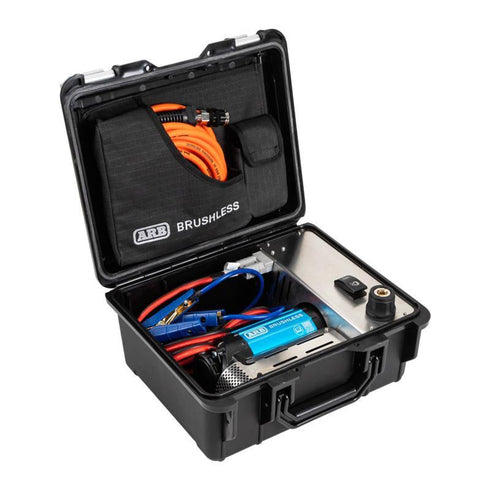

In the box
Includes 20ft Air Hose, inflation tire chuck, and blow gun.
Smart start
Staggered Power-On for twin variants to reduce the power spike at start up allowing brushless twins to start up on vehicles with smaller charging systems.
Specification
General
Prop 65
No
Duty Cycle
90%
Air Flow 0PSI
9.18 CFM
Air Flow 29PSI
6.20 CFM
Design
Brushless
Design
Portable
Dimensions and weight
Width
14 in
Height
7.3 in
Length
18.8 in
Weight
29.3 lb
Power and battery
Volts
12V
Max Amps
90 Amps
Performance
Max Psi
150 PSI
IP Rating
IP :67 Water Resistant
Shipping and package
Package size (L x W x H)
45 x 30 x 25 cm
Shipping weight
7 kg
CUSTOMER REVIEWS

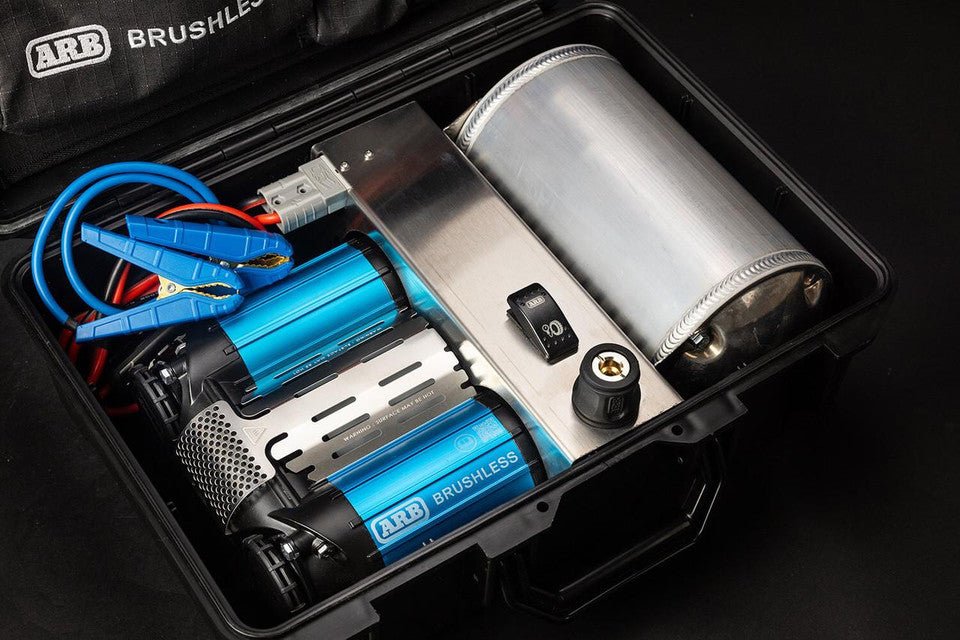

50% more output than ARB brushed models
Twin brushless motors deliver about 50% more air than ARB's brushed compressor, so you spend less time airing up and more time on the trail.

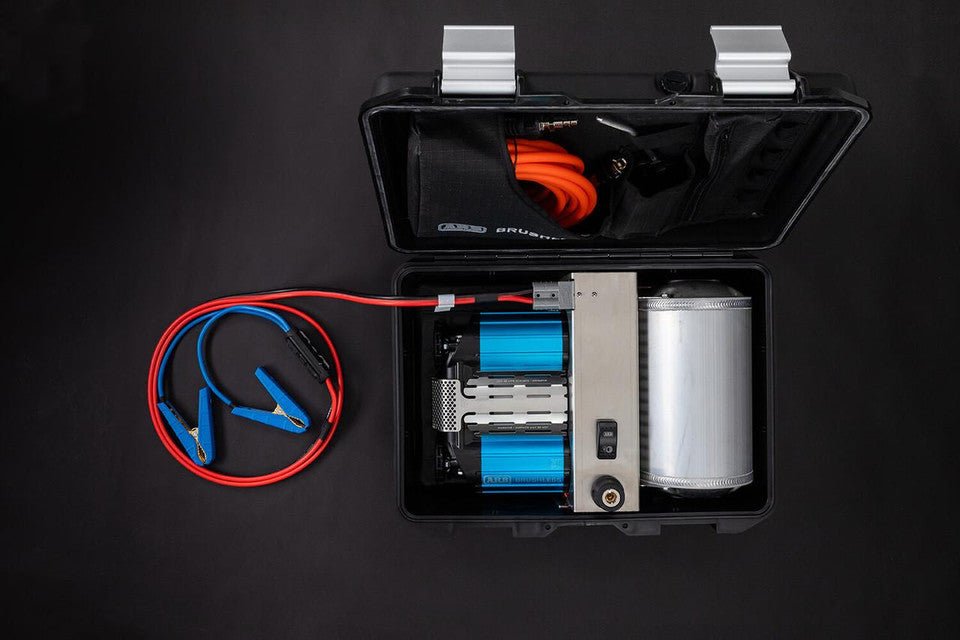

Active cooling with smart protection
A fan in each motor assembly keeps temperatures in check, while voltage and overload protection guard the compressor and your battery.

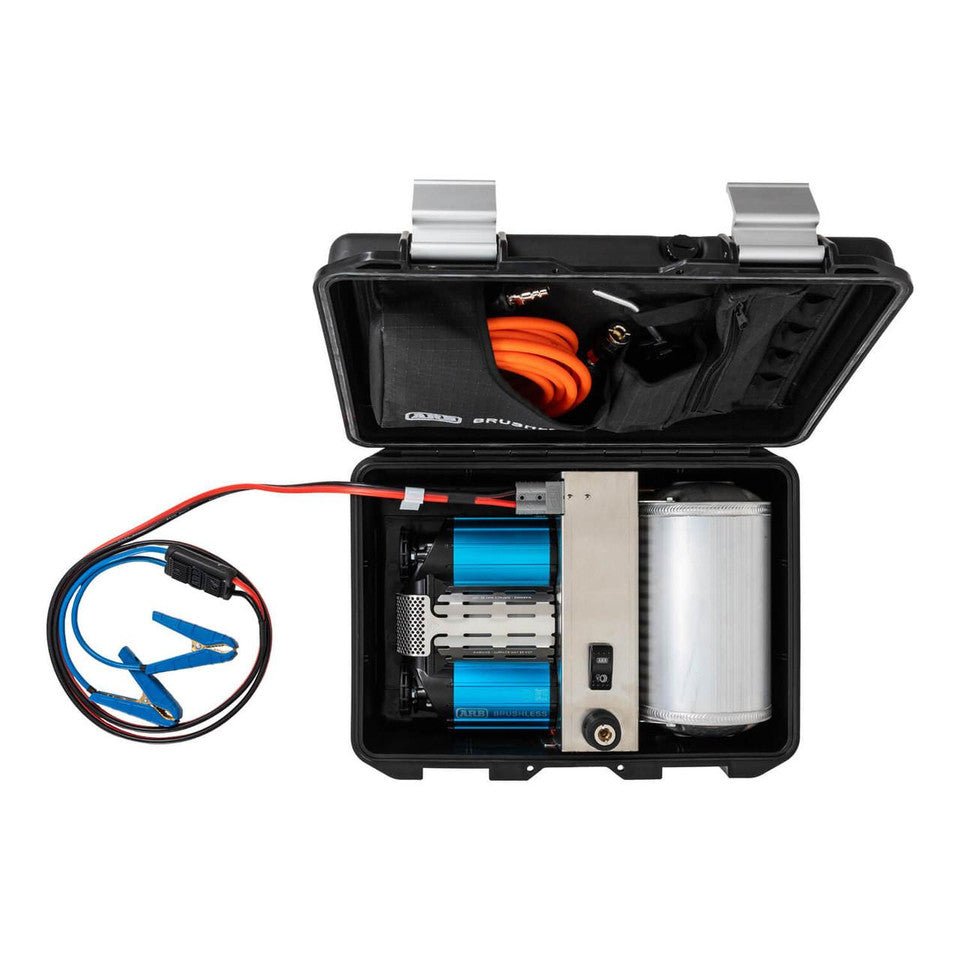

Clip on either way, hose included
The polarity correction harness lets either clamp go on either battery terminal, and a 20 ft air hose, tyre chuck and blow gun come in the kit.
Frequently Asked Questions
How fast does the ARB Brushless Twin portable compressor inflate tyres?▼
It flows 9.18 CFM at 0 psi and 6.20 CFM at 29 psi, about 50% more than ARB's brushed compressors, so re-inflating four large 4x4 tyres after the dunes takes far less time.
How does it connect to my vehicle?▼
It runs on 12 V and clamps straight onto the battery. The polarity correction harness lets either clamp go on either terminal, and Smart Start staggers the two motors to reduce the power spike on smaller charging systems.
What comes with it?▼
A 20 ft (about 6 m) air hose, a tyre inflation chuck, a blow gun and the polarity correction harness, all in a portable unit.
Can it handle UAE summer heat and dust?▼
It has active fan cooling in each motor, electronic speed control that adjusts for ambient temperature, a 90% duty cycle and an IP67 rating against dust and water.
