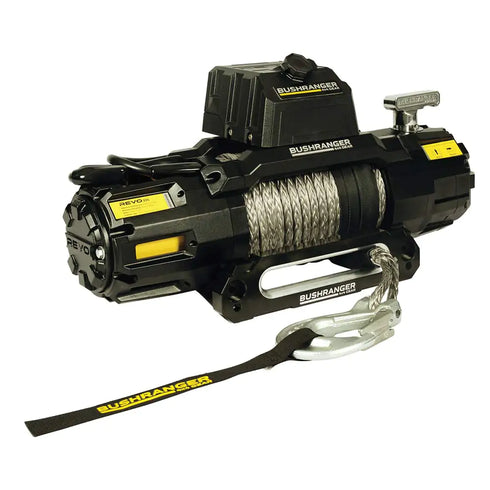

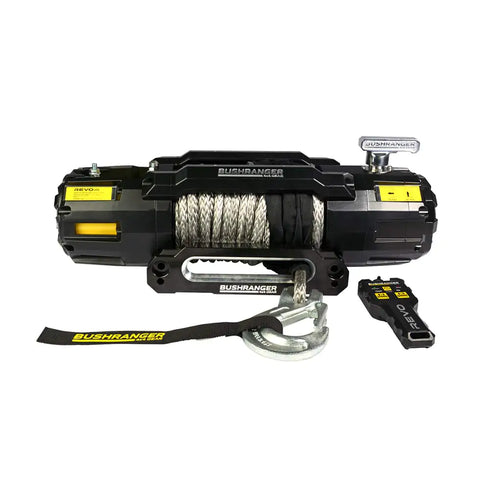

ARB REVO Synthetic Winch, 10,000lb Capacity, High-Speed Motor with Wireless Remote, Suitable for 4x4 Off-Road Vehicles
4,095
SKU: RWR100S
AVAILABILITY: Out of Stock
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION
- REVO WINCH, SYNTHETIC ROPE Premium Motor design | Series wound, 12V, 5.2HP motor made with high-grade materials resulting in a low current draw and longer life at extreme load.
- Clock-able motor housing | four position motor clocking for versatility during fitting Multi-mount control box | for easier installation No-lift clutch | easy to use spring loaded cam style clutch mechanism Tough Design | strong and lightweight aluminium alloy housings with durable black powder coat finish Zero brake drag | Zero drag braking system allows for the winch to be powered out under no load without heat build-up, making unspooling a breeze.
- 4 stage oversized gearbox | designed for maximum strength and durability.
- Extra wide gears improve load distribution resulting in less wear and increased long term reliability.
- Externally adjustable, 16 position gearbox clocking for ease of fitment and use.
- Gearbox mounted braking system | 100% load holding, proportional friction braking system located inside the gearbox, away from the drum - eliminating heat transfer to synthetic rope.
- Waterproof | Fully sealed motor, gearbox and drum for maximum protection from water, dust and debris. Control box | Multiple mounting orientations to suit every installation.
- Supplied with additional mounting bracket for hassle-free installation.
- 500A Contactor | Heavy duty sealed contractor reliably distributes power with minimal voltage drops.
- In-Line/Off-set Hawse Fairlead | Innovative two position, aircraft grade aluminium design to suit in-line and off-set mounting requirements.

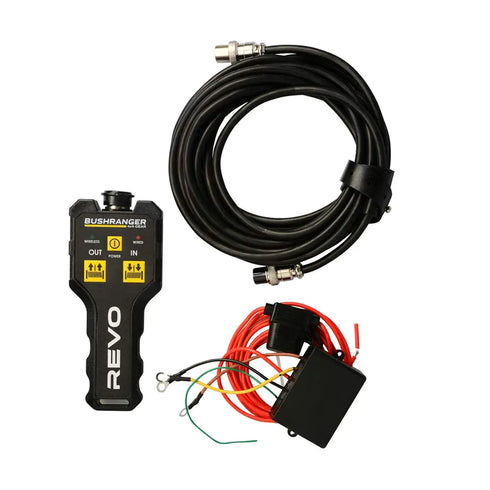

- Synthetic Rope | Premium, 10mm synthetic rope paired with removable clevis hook Wireless Hand Controller | Full sealed, IP67 rated, ergonomic hand controller with long range.
- Sealed 433MHz wireless receiver mounted internally to control box. Specifications:
- Part Number: RWR100S
- Dimensions: 583mm (L) x 165mm (W) x 216mm (H) (excludes control box) Rated
- Line Pull (single): 10,000lbs (4,536kg) Motor: Series wound, 12V, 5.2HP (3.9kw)
- Remote Control: Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
- Electrical: Contactor IP67 500A
- Gear Train: 4 stage gear driven
- Gear Ratio: 171:1
- Clutch (freespooling): Rotating Ring Gear Brake: Gearbox Mounted, Proportional Friction Brake System Drum Diameter/Length: 63.5mm x 244mm
- Mounting: Bolt Pattern 254mm x 114mm
- Rope: 10mm x 28m
- Synthetic Rope Fairlead: Two position Aluminium
- Hawse Fairlead Recommend Battery: 650CCA minimum
- Battery Leads: 1850mm Finish: Black Powder Coat Mechanical
- Warranty: Limited Lifetime Electrical
- Warranty: 5 years
- Waterproof Rating: IP67
- Certification: CE, IP67 Winch
- Weight: 33kg
- Packaged Weight: 37kg
