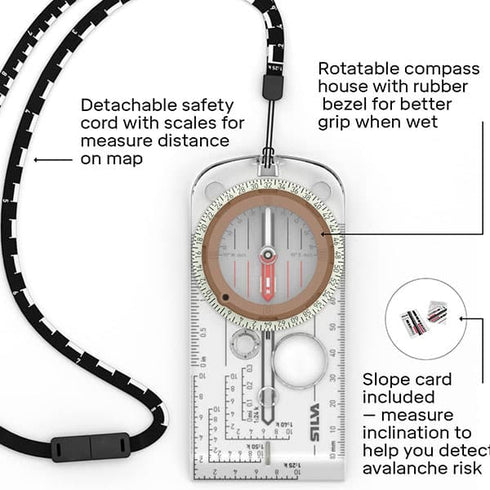

Silva Compass 5-6400/360
5 Year Warranty
SKU: 37585
AVAILABILITY: Out of Stock
The “full-sized” base plate compass for experienced navigators – used by NATO Forces around the world.

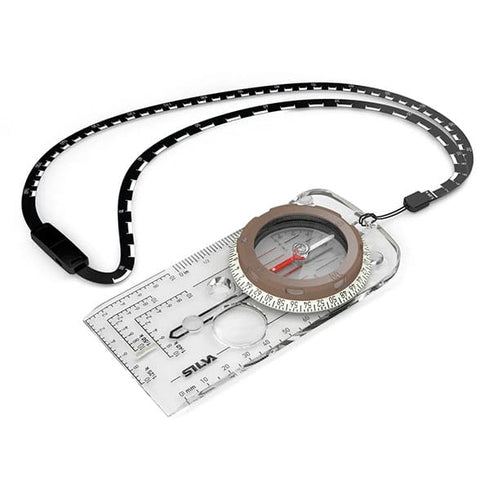

Mainly used by the infantry as a soldier’s or officer’s compass. Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass has a lumi-us graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgement of your route or to plan your route in advance.
• Silva 1-2-3 System baseplate compass
• Liquid filled capsule
• Sapphire jewel bearing
• Hardened steel pivot
• Magnifying lens

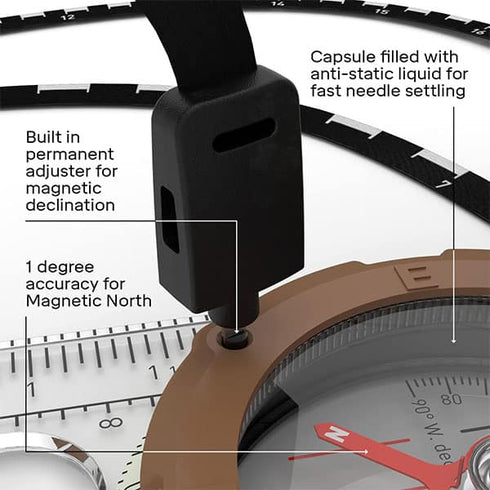

• Declination adjustment
• Clinometer

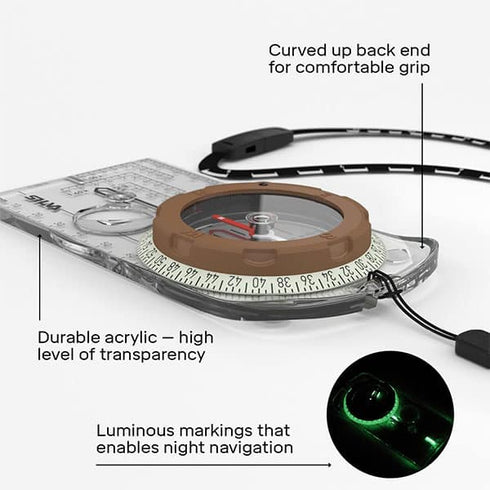

• Luminous markings
• Luminous graduation ring
• 4 hours illumination / active time after activation in light

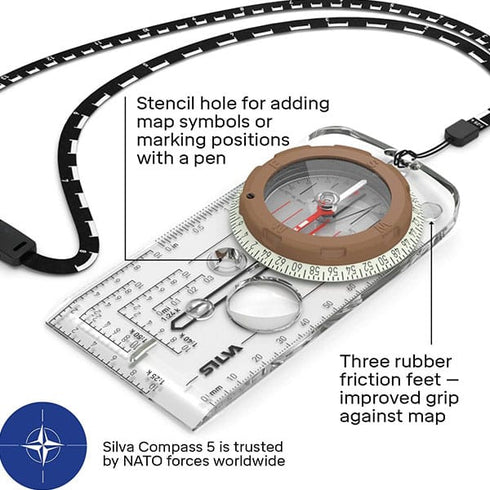

• Silicon friction feet

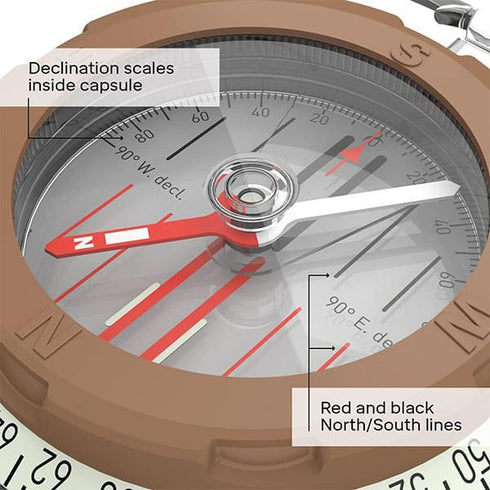

• Tactile grip ring Patented red/black N/S lines in capsule GPS scales
• Resolution (degrees / mils): 2 / 50
• Measuring scales: mm, inch

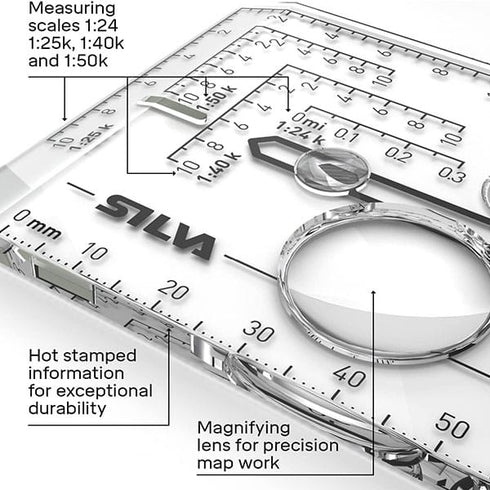

• Romer scales: 1:24k, 1:25k, 1:40k, 1:50k
• Accuracy: +/- 1 degrees / 17.8 mils
• Temperature operating range: –30 to +60 °C
| General | |
|---|---|
| Brand | Silva |
| Accuracy | +/- 1 deg (17.8 mils) |
| Included Accessories | Scale Lanyard, Slope card. |
| IP Classification | Waterproof |
| Measuring Scales | mm, inch, 1:25000, 1:40000, 1:50000 |
| Type of Compass | Base plate compass |
| User Level | Mainly used by the infantry as a soldier's or officer's compass |
| Dimensions and weight | |
| Dimensions | 12.7 x 6 x 1.3 |
| Weight | 35 g |
| Shipping and package | |
|---|---|
| Package size (L x W x H) | 14 x 10 x 5 cm |
| Shipping weight | 0.12 kg |
