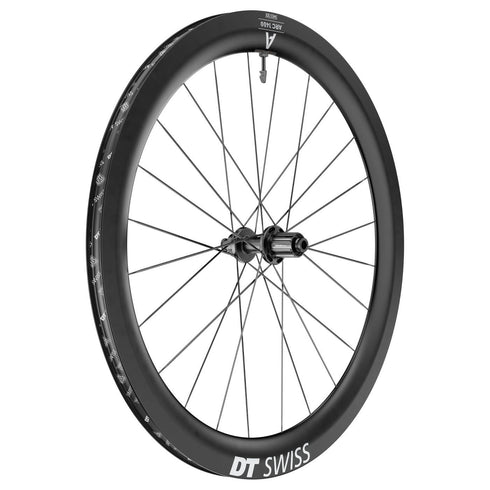

DT Swiss ARC 1400 DICUT 55 Carbon Disc Brake Wheel, 55 mm Aero Road Wheel with 240 Hub, Front or Rear
4,600
SKU: 7613052546032
AVAILABILITY: In stock (1 item)
PRODUCT INFORMATION
The DT Swiss ARC 1400 DICUT 55 is a 55 mm deep carbon aero wheel for disc brake road and triathlon bikes, sold here as a front or a rear wheel. The third generation ARC rim has a 22 mm internal width and a V-shaped profile, so it supports today's wider tyres for grip and comfort without giving away aerodynamics. The 55 mm depth is the all-rounder of the range: fast on rolling terrain without feeling heavy on the climbs.
Both wheels use the DT Swiss 240 DICUT hub with a Center Lock disc interface, DT aero comp II spokes and hidden Pro Lock nipples, and the tubeless ready rims also take folding or wire bead clincher tyres. Choose Front or Rear above: each position is priced on its own.
Features
| Feature | What it does for you |
|---|---|
| 55 mm V-shaped rim | Aero profile that offsets the wider rim, for low drag and a calm steering feel. |
| 22 mm internal width | Built around the 29 mm Continental Aero 111 front tyre and other modern wide tyres. |
| DT Swiss 240 DICUT hub | Proven hub with tool-free conversion between axle and freehub standards. |
| Aero spokes | DT aero comp II spokes, with only 20 in the front wheel to cut drag and weight. |
| Tubeless ready | Run tubeless at lower pressure, or fit standard clincher tyres. |
Specification
| General | |
|---|---|
| Use | Road, triathlon, time trial |
| Wheel size | 28 in (700c, ETRTO 22-622) |
| Brake | Disc, Center Lock |
| Rim | |
| Material | Carbon, clincher |
| Rim depth | 55 mm |
| Internal width | 22 mm |
| Tyre type | Tubeless ready, folding or wire bead clincher |
| Max system weight | 110 kg |
| Hub and spokes | |
| Hub | DT Swiss 240 DICUT |
| Spokes | DT aero comp II, T-head |
| Nipples | DT Pro Lock, hidden |
| Front axle | 12 x 100 mm thru axle |
| Rear axle | 12 x 142 mm thru axle |
| Rear freehub | Ratchet EXP 36 |
| Rear spoke holes | 24 |
| Shipping and package | |
|---|---|
| Package size (L x W x H) | 72 x 72 x 12 cm |
| Shipping weight | 1.6 kg |
CUSTOMER REVIEWS
Frequently Asked Questions
Is this wheel for disc or rim brakes? ▼
Disc brakes. Both the front and rear wheel use a Center Lock disc interface.
What tyre width suits the 22 mm rim? ▼
DT Swiss designed the rim around the 29 mm Continental Aero 111 tyre, and it suits other modern wide road tyres. It is tubeless ready and also takes standard clinchers.
Which freehub body is fitted to the rear wheel? ▼
DT Swiss lists both SRAM XDR and Shimano HG-L road bodies for this hub, and DT Swiss hubs convert between them without tools. Message us before ordering and we will confirm the body fitted to the wheel in stock.
Do I have to buy the front and rear together? ▼
No. Front and rear are sold separately at their own prices; pick the position you need, or add both to your cart for a pair.
