DT Swiss ARC 1400 DICUT 62 Rear Wheel, Carbon Aero Disc Brake Wheel for Road, Triathlon and Time Trial
4,921
2 Year Warranty
SKU: 7613052374338
AVAILABILITY: In stock (1 item)
Package size: 72 x 72 x 14 cm | Weight: 2.5 kg
PRODUCT INFORMATION

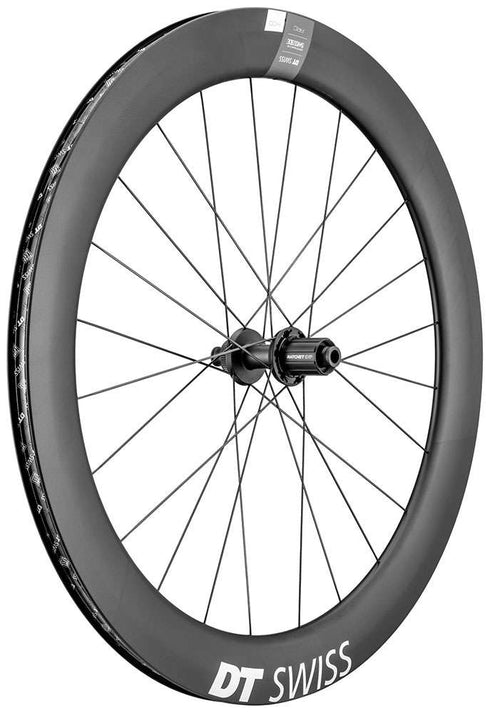

The DT Swiss ARC 1400 DICUT 62 rear wheel is a 62 mm carbon aero wheel for disc brake road, time trial and triathlon bikes. It is built for riders who want speed on flat and rolling courses with predictable handling, developed with the aero specialists at Swiss Side.
It fits 12 x 142 mm thru axle frames with a Center Lock rotor, uses DT's Ratchet EXP freehub with 36 point engagement, and ships with a Shimano 11-speed road freehub plus a SRAM XDR body for 12-speed. DT recommends 25 to 28 mm tyres, with a maximum rider weight of 110 kg.
Features
| Feature | What it does for you |
|---|---|
| 62 mm aero rim | Carbon clincher rim developed with Swiss Side. |
| Disc brake, center lock | For disc brake bikes with Center Lock rotors. |
| Ratchet EXP freehub | 36 point engagement; Shimano 11-speed road and SRAM XDR bodies included. |
| Tubeless ready | 20 mm internal, 31 mm external width. |
Specification
| General | |
|---|---|
| Position | Rear |
| Brake | Disc, center lock |
| Axle | 12 x 142 mm thru axle |
| Spoke holes | 24 |
| Freehub | Ratchet EXP, 36 point; Shimano 11 road + SRAM XDR included |
| Dimensions and weight | |
| Wheel size | 700C, etrto 20-622 |
| Rim height | 62 mm |
| Rim width | 20 mm internal, 31 mm external |
| Recommended tyre width | 25 to 28 mm |
| Max rider weight | 110 kg |
| Shipping and package | |
|---|---|
| Package size (L x W x H) | 72 x 72 x 14 cm |
| Shipping weight | 2.5 kg |
CUSTOMER REVIEWS
Frequently Asked Questions
Which freehub bodies come with it? ▼
A Shimano 11-speed road body is fitted, and a SRAM XDR body for 12-speed is included.
What axle and brake does it need? ▼
A 12 x 142 mm thru axle frame with disc brakes and a Center Lock rotor.
What tyre width works best? ▼
DT Swiss recommends 25 mm for the best aerodynamics, and 28 mm also fits.
