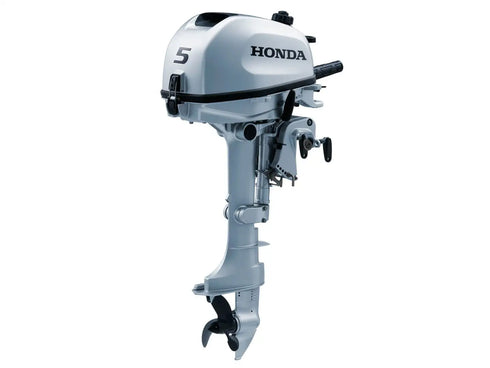

Honda 5Hp Engine 4 Stroke

• Engine: 4-Stroke, OHV, 1 Cylinder / 2 Valves
• Weight (lightest model): 28.3 kg (62.4 lbs.)
• Displacement: 127 cc / 7.75 cu.in
• Bore & Stroke: 60 x 45 mm (2.36 x 1.77″)
• Full Throttle RPM Range: 4,500-5,500 RPM
• Propshaft Rated Horsepower: 5 HP @ 5,000 RPM
• Cooling System: Water cooling with thermostat
• Fuel Delivery: 1 Carburetor
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Tank Capacity (Built-in): 1.5 L (0.33 gal)
• Ignition System: Digital CDI
• Starting System: Recoil
• Exhaust: Under Water, above propeller
• Oil Capacity: 0.55 L (0.48 Imp. qt)
• Transom angle: 5-Stage adjustment (4°-8°-12°-16°-20°)
• Steering Angle: 45° right and left
• Gear Ratio: 2.08:1 (27/13)
• Gear Shift: F-N-R
• DRY WEIGHT: L-Type-27.5 kg/60.6 lb.
