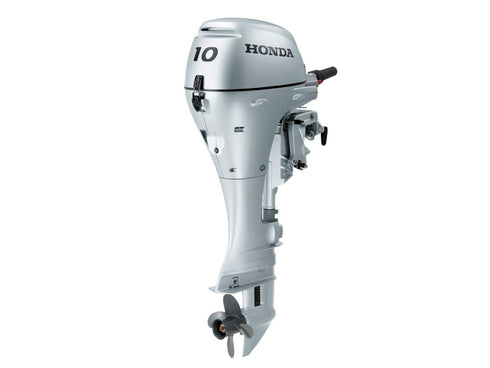

Honda BF10 Outboard Engine 9.9 HP 4 Stroke, Water-Cooled Petrol Outboard Motor in Short or Long Shaft
9,250
SKU: SS-18942
AVAILABILITY: In stock (1 item)
Package size: 135 x 50 x 50 cm | Weight: 40.5 kg
PRODUCT INFORMATION
The Honda BF10 is a 9.9 HP water-cooled 4-stroke petrol outboard for RIBs, inflatables, tenders and small fishing boats. It suits weekend boaters and anglers running out of UAE marinas who want proven Honda power with forward, neutral and reverse.
Choose the short or long shaft to match your transom. It is a 222 cc, 2-cylinder 4-stroke rated at 9.9 HP (7.3 kW).
Features
| Feature | What it does for you |
|---|---|
| 4-stroke Honda Engine | Petrol 4-stroke, no oil mixing. |
| Water cooled | Water cooling system. |
| Forward, neutral, reverse | Full gearbox for docking. |
| Two shaft lengths | Short or long shaft, priced per version. |
Specification
| General | |
|---|---|
| Engine | 4-stroke OHC, 2 cylinders |
| Displacement | 222 cc |
| Rated power | 9.9 HP (7.3 kW) |
| Fuel system | Carburettor with accelerator pump |
| Ignition | Electronic PGM-IG |
| Gear ratio | 2.33 |
| Gears | Forward, neutral, reverse |
| Alternator | 6 A |
| Propeller | 4-blade, 9 1/4 x 9 in (S), 9 1/4 x 8 in (L) |
| Starting | Manual |
| Dimensions and weight | |
| Length | 610 mm |
| Width | 345 mm |
| Weight | 42 kg |
| Performance | |
| Full throttle range | 5000 to 6000 rpm |
| Cooling | Water cooled |
| Shipping and package | |
|---|---|
| Package size (L x W x H) | 135 x 50 x 50 cm |
| Shipping weight | 40.5 kg |
CUSTOMER REVIEWS
Frequently Asked Questions
How powerful is the BF10? ▼
It is a 222 cc, 2-cylinder 4-stroke rated at 9.9 HP (7.3 kW).
Which shaft length do I need? ▼
Pick the shaft that matches your boat's transom height: short shaft for lower transoms, long shaft for taller ones. Check your boat's manual if unsure.
Does it have reverse? ▼
Yes, it has forward, neutral and reverse gears.
How heavy is it? ▼
Honda lists 42 kg.
