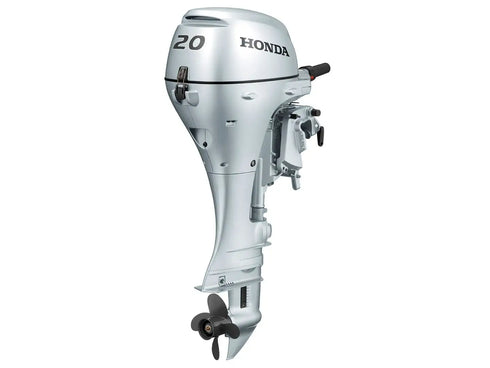

Honda Engine 20hp 4 Stroke

Specifications

• Engine type: 4-Stroke SOHC 2 Cylinder/4 Valves
• Dry weight: 47-50 kg (104-110 lbs)
• Displacement: 350 cc (21.5 cubic inches)
• Bore & Stroke: 59 mm x 64 mm (2.3 x 2.5 inches)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Rated Power: 20 HP @ 5,500 RPM
• Cooling System: Water Cooled
• Fuel Delivery: 1 Carburetor
• Ignition System: PGM-IG
• Starting System: Electric/Recoil
• Exhaust: Through Hub
• Lubrication: Wet Sump
• Trim Range: 4 Stage 8°-12°-16°-20°
• Tilt Range: 72°
• Gear Ratio: 2.08:1
• Gear Shift: F-N-R
• Propeller: 4-Blade Aluminum
• Diameter x Pitch, Standard: 9 1/4 x 10 inches
• Diameter x Pitch, Power Thrust: 10 x 7? inches
