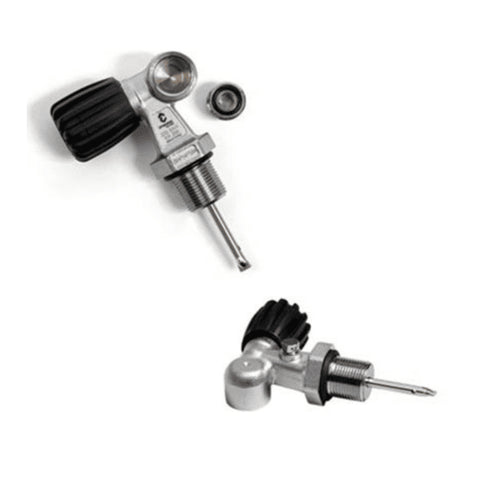

Dynamic Nord SV-10 - صمام أسطوانة غوص أحادي الصمام، صمام أسطوانة DIN/INT بضغط 232 بار مع سن لولبي PSM مقاس 3/4 بوصة وحشوة
326
Default variant
معلومات المنتج
الميزات
المواصفات
تعليقات العملاء
معلومات المنتج
صمام Dynamic Nord SV-10 هو صمام أسطوانة غوص أحادي المخرج مصنف لضغط 232 بار، مع سن لولبي PSM مقاس 3/4 بوصة لعنق الأسطوانة. وهو مخصص لمراكز الغوص وأصحاب الأسطوانات وفنيي الصيانة لتركيب أو استبدال صمام في أسطوانة غوص قياسية.
يعمل بنظام DIN أو INT: استخدمه بنظام DIN، أو ركّب القطعة الداخلية المرفقة لاستخدام منظم من نوع yoke (INT)، بحيث يخدم صمام واحد جميع الغواصين على متن القارب.
الميزات
الميزة
ما تقدمه لك
DIN أو INT
يحول المكوّن الموصول مخرج DIN ليناسب منظمات الكتف.
مصنف لضغط 232 بار
لأسطوانات الغوص القياسية بضغط 232 بار.
سن لولبي PSM مقاس 3/4 بوصة
يناسب الأسطوانات ذات السن اللولبي في العنق مقاس 3/4 بوصة.
المواصفات
النوع
أحادي الصمام (مخرج واحد)
ضغط التشغيل
232 بار
المخرج
DIN مع حشية INT
سن الأسطوانة
3/4 بوصة PSM
رمز الموديل
01-1106-0000
Frequently Asked Questions
Will this valve fit my tank?
▼
It fits cylinders with a 3/4 inch PSM neck thread. Check your tank's neck thread before ordering.
Can I use a yoke regulator?
▼
Yes. Fit the INT insert into the DIN outlet to use a yoke (INT) regulator.
Who should fit the valve?
▼
A qualified technician should fit a tank valve and check the cylinder before filling.
Is it rated for 300 bar?
▼
No. It is rated to 232 bar.
