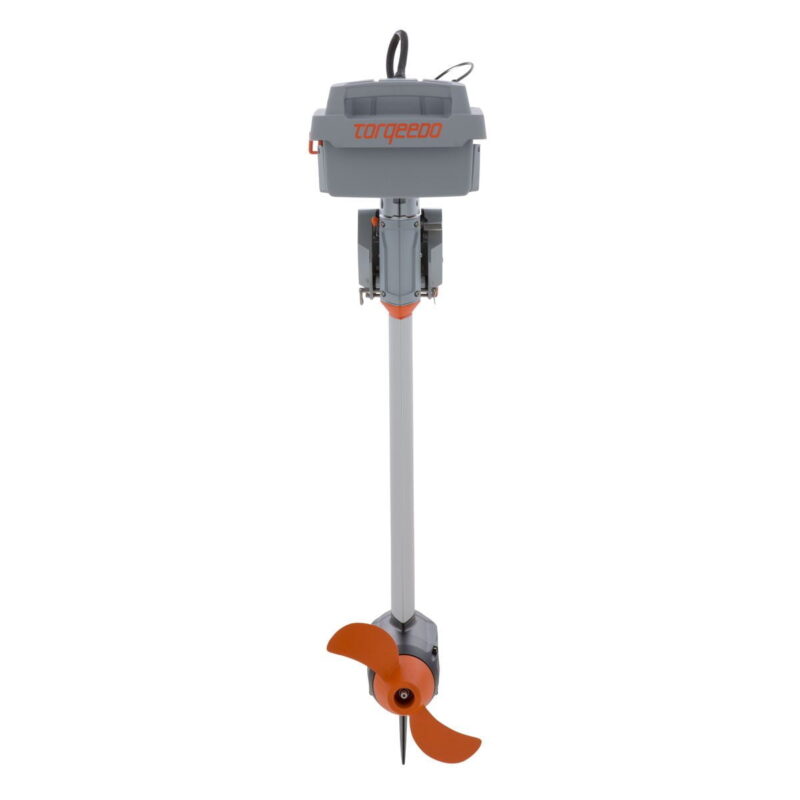

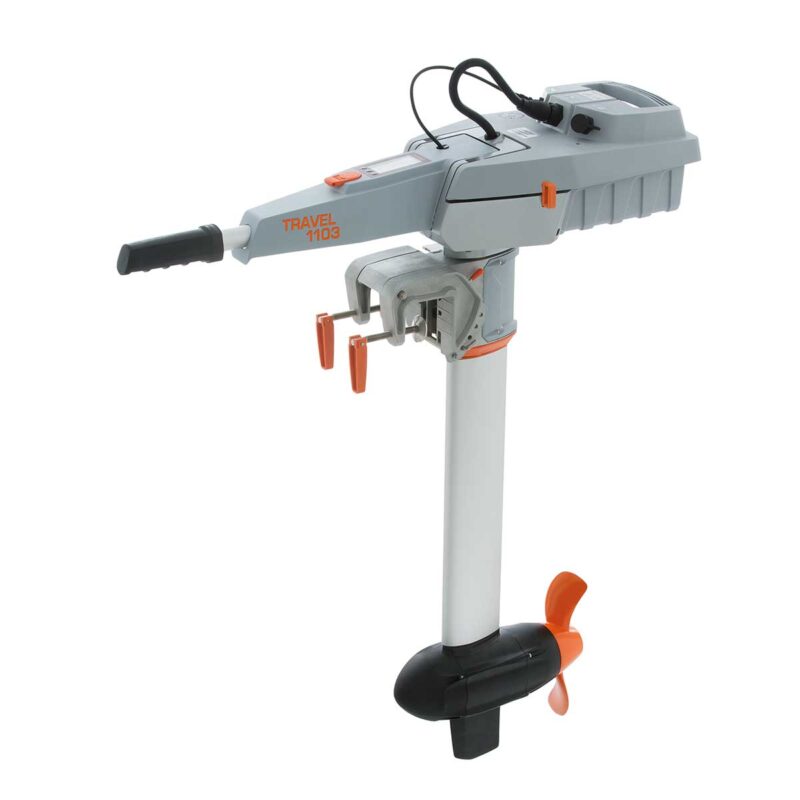

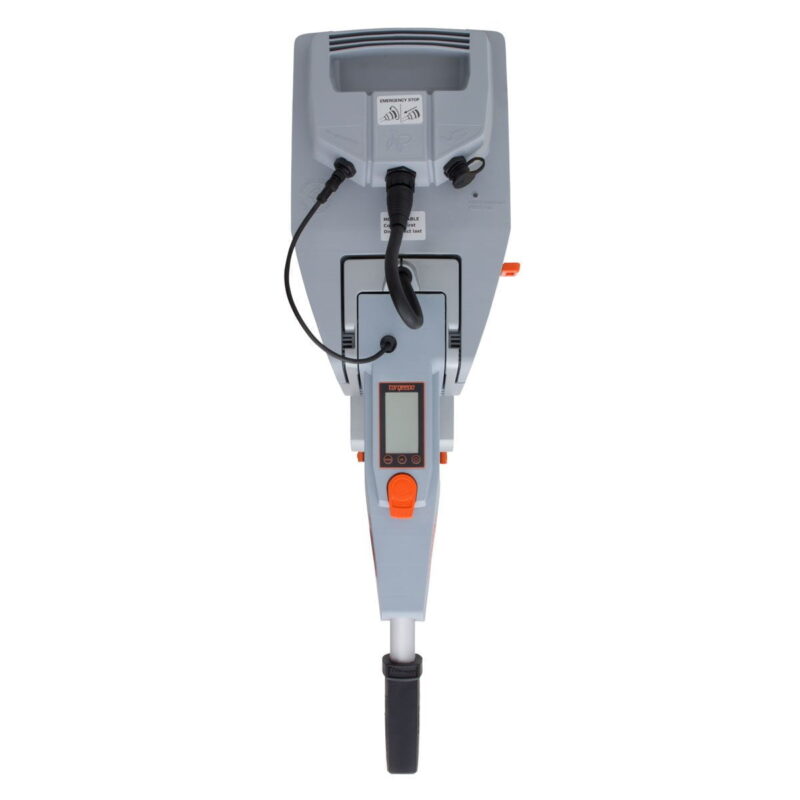

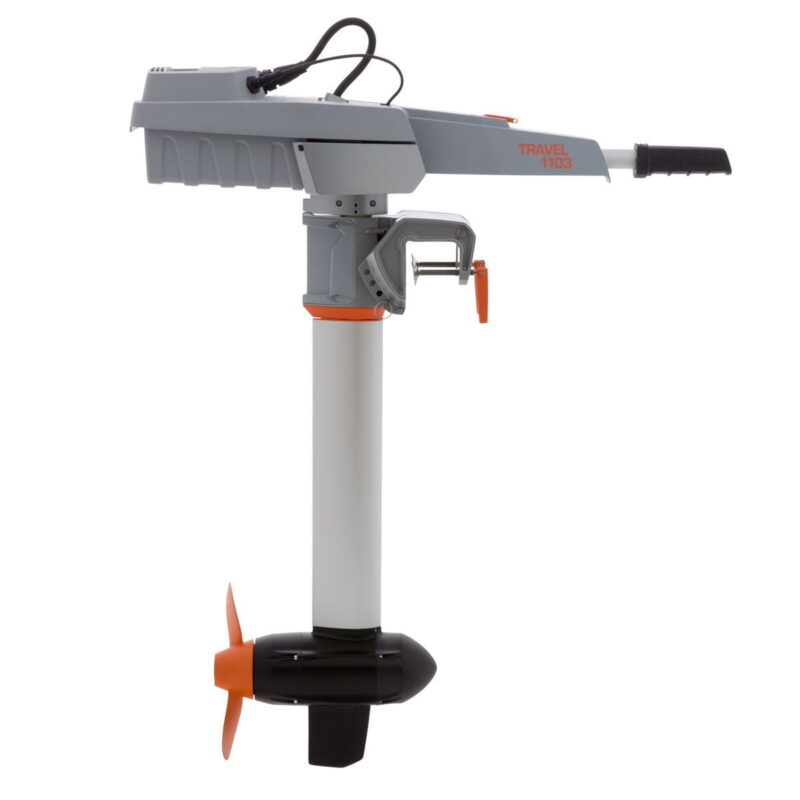

Torqeedo Travel 1103 CS-3HP Short shaft

AED10,127

  • high-efficiency outboard with integrated 915 Wh high-performance lithium battery
  • including onboard computer with GPS-based range calculation and charger
  • ultra-quiet (33db), clean and compact
  • silent direct-drive
  • solar-chargeable
  • instantaneous throttle response
  • 10% more power
  • improved durability
  • 3 HP equivalent
  • emergency magnetic kill switch, short shaft
  • completely waterproof (IP67)
  • total weight 17.3 kg (S) / 17.7 kg (L)
  • shaft length: short 62.5 cm / long 75 cm

Only 1 left in stock


Checkout
  • Free Shipping in UAE For orders above AED 100.
  • 7 days easy returns.
  • Delivery within 1-2 working days.
  • World wide shipping.

The top-of-the-line 1103 C model is a new addition to the globally successful Travel series. Featuring a brand-new, direct-drive motor design, it comes with the high-capacity 915 Wh battery – a range-extending 73% increase in capacity compared to the base model. The 1103 C also delivers 10% more power from 1,000 to 1,100 W, a stronger aluminium pylon for increased protection from impact damage and an upgraded transom mount.

Travel 1103 – Benefits:

  • with its integrated lithium battery and its outstanding efficiency, the Travel is the alternative to a small petrol outboard
  • can do everything that a 1.5 / 3 HP petrol outboard can, plus it’s environmentally friendlier, quieter, lighter and more convenient
  • completely waterproof (IP67)
  • Instantaneous throttle response
  • on-board computer with GPS-based calculation of remaining range
  • solar rechargeable – including during the voyage
  • can be easily dismantled for transport and space-saving storage; the outboard on its own weighs only 11.3 kg (S) / 11.7 kg (L)
  • a clean affair: no matter how or where you store your Travel – there’s no risk of leakage or petrol smells

Travel 1103 C with integrated 915 Wh battery (29.6 V / 31 Ah)


SPEED IN KNOTS (KM/H)*RANGE IN SM (KM)*RUNNING TIME IN HOURS:
Slow2.0 (3.7)40.0 (74.0)20:00
Half throttle3.0 (5.5)18.0 (33.0)06:00
Full throttle5.5 (10.0)4.6 (8.3)00:50

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Travel’s on-board computer calculates the remaining range constantly, by linking the motor’s consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.

Technical Data Travel

Travel 1103 C
Input power in watts1100
Propulsive power in watts520
Comparable petrol outboards (propulsive power)3 HP
Comparable petrol outboards (thrust)4 HP
Maximum overall efficiency in %49
Static thrust in lbs*70
Integrated battery915 Wh Li-Ion
Nominal voltage29.6
Final charging voltage33.6
Total weight in kg17.3(S) / 17.7 (L)
Motor weight without battery in kg11.3(S) / 11.7(L)
Weight of integrated battery6.0
Shaft length in cm62.5(S) / 75(L)
Standard propeller
v = speed in km/h at p = power in watts
v10/p1100
Alternative propeller optionsv10/p1100 weedless
Propeller Guide
Maximum propeller speed in rpm1,450
ControlTiller
TorqLinkNo
Steering+/-60° lockable
Tilting deviceManual, with impact protection, 78°
Trim deviceManual, 4-step
Integrated on-board computerYes
Stepless forward/reverse driveYes
* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.

Technical information according to COMMISSION REGULATION (EU) 2019/1782:

Technical information:
Power SupplyEDAC EA11012E-240
Input Voltage100 – 240 VAC
Input Frequency50 – 60 Hz
Output Voltage24 VDC
Output Current4,16 A
Output Power100 W
Average operational efficiency≥ 89 % at 25 %, 50 %, 75 %, 100 % output power
Efficiency at light loads (10 %)≥ 79 %
No Load Power consumption≤ 0,15 Wat at 0 % output power
